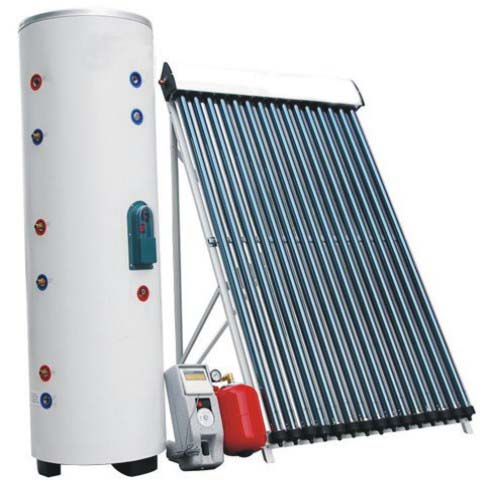

Split Pressure Solar Water Heater (MC-SP)

    1. Detailed information
    Split Pressure Solar Water Heater (MC-SP)


    1.Vacuum tube:  Vacuum tube with copper heat pipe
    2.Inner tank:  SUS304-2B Food Class Stainless Steel, by Argon arc.Thickness 1.5±0.25mm
    3.Outer tank:  Galvanized Steel, Thickness 0.5±0.25mm.
    4.Bracket:  Aluminum Alloy, Thickness Main Frame1.8-2.0±0.25mm.
    5.Tank insulation:  Polyurethane
    6.Working Station:  German WILO, 8L
    7.Copper Heat Pipe:  Heat pipe Copper, 0.6mm thickness, and 140mm condenser.Anti-freezing function.
    8.Insulation Thickness:  50mm
    9.Hail Resistance:  30mm.
    10.Working Pressure:  Normal working pressure is 6 bar, and testing pressure is 12 bar.
    11.Accessories:  Electrical Heating, Safety Valve, Magnesium Bar, Temperature Sensor, Controller, Electrical Elements.
    12.Packing:  In Standard Exported Carton


    1.Pipeline is made of all red copper and conducted by heat transfer medium liquid.
    2.Temperature preservation is equipped with standard electric water heater setting, automatic temperature control exchanger, and increase anode magnesium bars sticking to prevent furring.
    3.The insulating layer uses polyurethane bulk and has a good effect of temperature preservation.
    4.Stable and reliable performance.
    5.Fashionable and beautiful.
    6.Environmental protection and energy saving.
