Solar Vacuum Tube

Solar Conductivity Tube

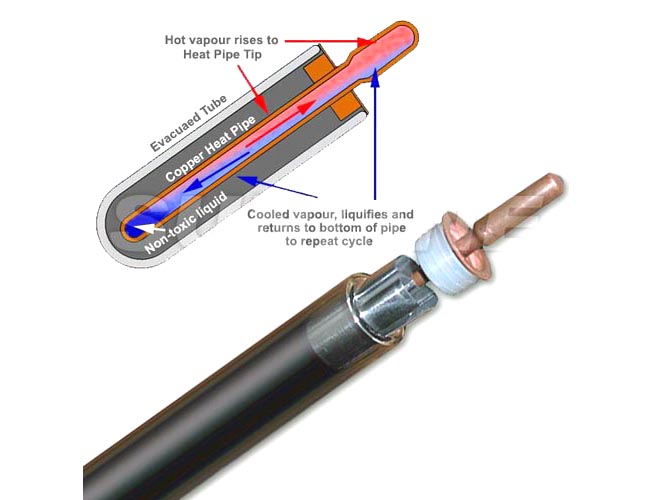

Superconductivity tube: the difference in structure lies in the copper heat pipe inside it and most of the radiation from the sun is absorbed by this sealed heat pipe which contains an anti-freeze typ

    1. Detailed information
    Superconductivity tube: the difference in structure lies in the copper heat pipe inside it and most of the radiation from the sun is absorbed by this sealed heat pipe which contains an anti-freeze type liquid.
    It has many advantages as follow:
    a. the pipe is made of super conductive oxygen-free copper. The general solar tubes transfer the heat energy by the water, but the superconductive tube with the smallest surface ,can transfer the heat to a long distance by the copper pipe and the heat spoilage is almost zero ,possessing a very high heat conducting efficiencyand a high speed.
    b. No water inside, can protect from freezing or boiling ,more reliable and safe.
    c. The evacuated tube with the super conductive heat pipe is the most advanced technology in the world.
    d. long service life and graceful appearance keeps eco-friendly and be your best choice.
    Specification:
    Structure All-Glass Double Tube Co-Axial Structure
    Glass Material High Borosilicate 3.3 Glass
    External Pipe Diameter & Thickness

    dia.=47±0..5mm  &=1.6mm,    dia.=58±0.5mm  &=1.6mm,
    dia.=70±0.5mm  &=2.0mm,

    Internal Pipe
    Diameter & Thickness
    dia.=37±0.7mm  &=1.6mm,    dia.=47±0.7mm  &=1.6mm, dia.=58±0.7mm  &=2.0mm,
    Pipe Length
    800,1200,1500mm, 1600mm, 1800mm, 1900mm, 2000mm,2100mm
    Absorptive Coating Property Structure Cu/SS-ALN(H)/SS-ALN(L)/ALN
    Sediment Method Three Layer Magnetron Sputtering Plating
    Specific Absorption as=0.93~0.96(AM1.5)
    Emission Ratio 0.04~0.06(80°C±5°C)
    Vacuum P≤5.0×10-3Pa
    Idle Sunning Property Y= 260 ~ 300m²°C/KW
    Solar Irradiation for Obtaining a Preset Water Temperature H≤4.7 MJ/ m²(dia.58) H=3.7~4.2 MJ/ m²
    H≤3.7 MJ/ m²(dia.47) H=2.9~3.2 MJ/ m²
    Average Heat Loss Coefficient Ult=0.4~0.6W/( m².°C)
    Pressure-Endure Ability 0.6Mpa
    Hail-Endure Ability 30mm
    Lifetime 15years
