Heat-pipe solar collector

 Heat-pipe solar collector

Characteristics：

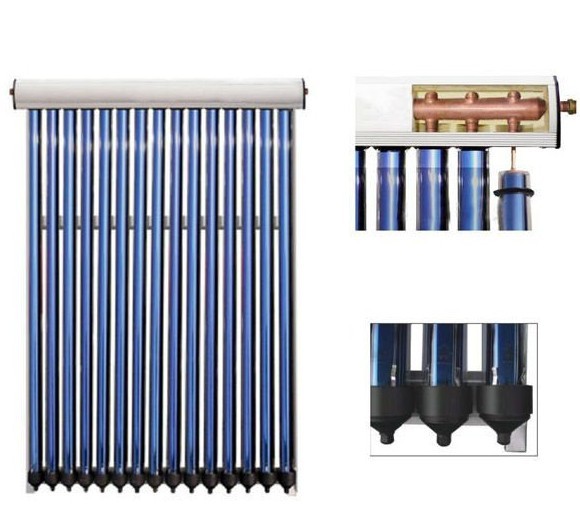

1. All the pipeline is made of red copper and conducted by heat transfer medium liquid.With the heat pipe in the vacuum tube,so no water will flow in the vacuum tube
2. The manifold uses aluminum alloy for exterior,red copper for interior,also with fashion design.
3. Withstand high pressure when it is working
4. It can be combined arbitrarily to meet the demand of large water consumption,and also could be combined with existing pipeline
5. Each tube can work alone,so the solar colletcor can work even one tube is broken and easy to change if necessary

KEY SPECIFICATION:
Vacuum Tube: Vacuum Tube With Copper Heat Pipe
Inner Tank: Stainless Steel 304-2B
External Shell: Galvanized Steel/ Aluminum Alloy/ Stainless Steel
Frame: Galvanized Steel/ Aluminum Alloy/ Stainless Steel.
Insulating Layer: Polyurethane Foam
Max Pressure: 1Mpa
Operating Fluid Pressure: 0.6Mpa
Max Stagnation Temperature: 210.3℃
Water Flow Rate: 0.02kg/s per ㎡
Hail resistance: 25mm
Heat Pipe: Anti-freezing > -35 ℃
FEATURE:
Collector Separates With The Storage Tank, The Collector Can Be Put On Mounting Flat Or Roof
This Product Has Hail Resistance
Water Is Rapidly Heated By The Heat Pipe
No Water In The Tubes, So The Tubes Will Not Freeze In Winter
It Can Still Operate In The Event Of Occasional Tube Breakages
Can Be Connected With Existing System

Type Area(M2) Vacuum tube：
Qty(pcs) Length/Width/Height(mm) GrossWeight (KG) 20GP/40GP/40HQ  Loading Qty(sets)
DIYI-C01-10 1.280 10 2020*995*155 43 195/395/485
DIYI-C01-15 1.939 15 2020*1410*155 62 120/245/291
DIYI-C01-20 2.595 20 2020*1825*155 70 92/187/222
DIYI-C01-25 3.251 25 2020*2240*155 87 80/163/193
DIYI-C01-30 3.907 30 2020*2655*155 105 65/130/161
Vacuum tube size: 58*1800mm

Design Advantages
Evacuated Tube Efficiency：
The vacuum space in the evacuated tube greatly reduces heat loss. This greatly increases
the conversion efficiency at higher water temperatures or when the outside temperature is
very cold.For a thorough understanding of evacuated tubes

Evacuated Tube and Heat Pipe：
The Apricus evacuated tube and heat pipe are assembled differently to any other product on the market.

Rather than a centrally located heat pipe with heat transfer fins radiating out to the glass wall, the heat

pipe is positioned directly against the glass wall, where the sun is striking. The aluminium heat transfer

fins are tightly held against the top inner wall of the evacuated tube as well as the heat pipe with a set of

specially designed clips.  This is an important design feature as over time with the high temperature,

Aluminium will soften, and so the clips ensure long term tight contact, which is essentially for optimal performance.
